Materials

⚙️ High-Strength Zinc-Aluminum-Magnesium Light Steel Frame

Premium Material Specifications

Material Grade

G550 - High Strength Structural Steel
Yield Strength: 550 MPa
Tensile Strength: ≥ 550 MPa
Elongation: ≥ 10%

G550 High Strength Structural Steel

Coating Specification

Zn275/ZA150 - Zinc-Aluminum-Magnesium Alloy
Zinc Coating: 275 g/m²
Aluminum-Magnesium: 150 g/m²
Corrosion Resistance: 5-10x higher than traditional galvanized

Zn275 ZA150 Anti-Corrosion

Thickness

Base Metal Thickness: 0.8mm

Total Coated Thickness: 0.82-0.85mm

Tolerance: ±0.05mm

0.8mm G550+Zn275/ZA150

✨ Comprehensive Performance

90+

Years Lifespan

550

MPa Yield Strength

10x

Corrosion Resistance

Media

Video

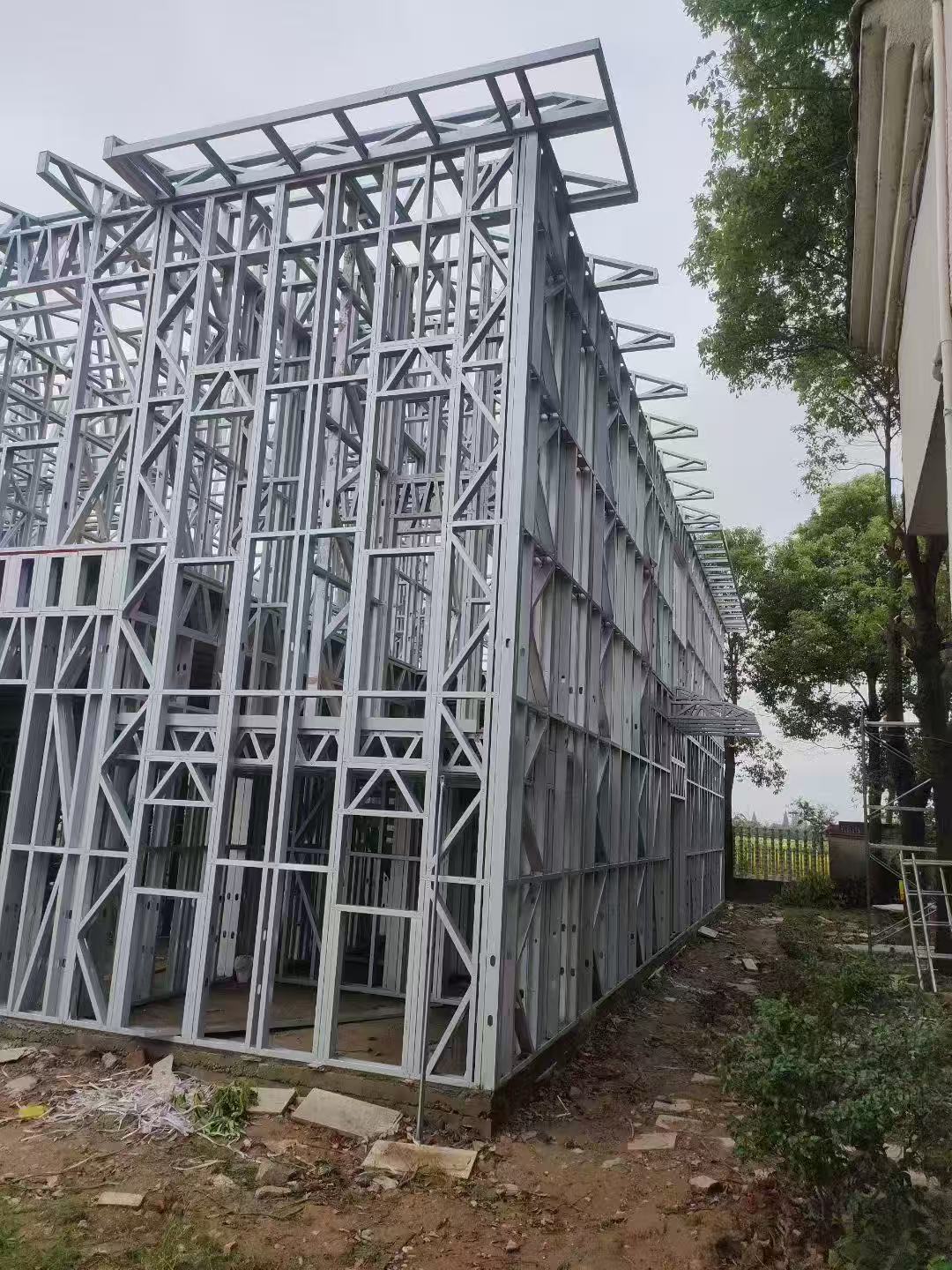

Main frame of the house

Main frame of the house

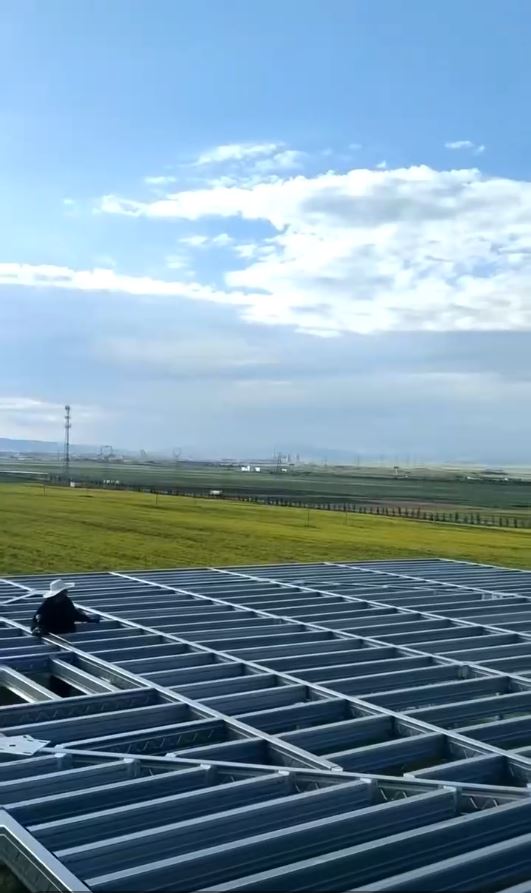

On the grassland

On the grassland Video

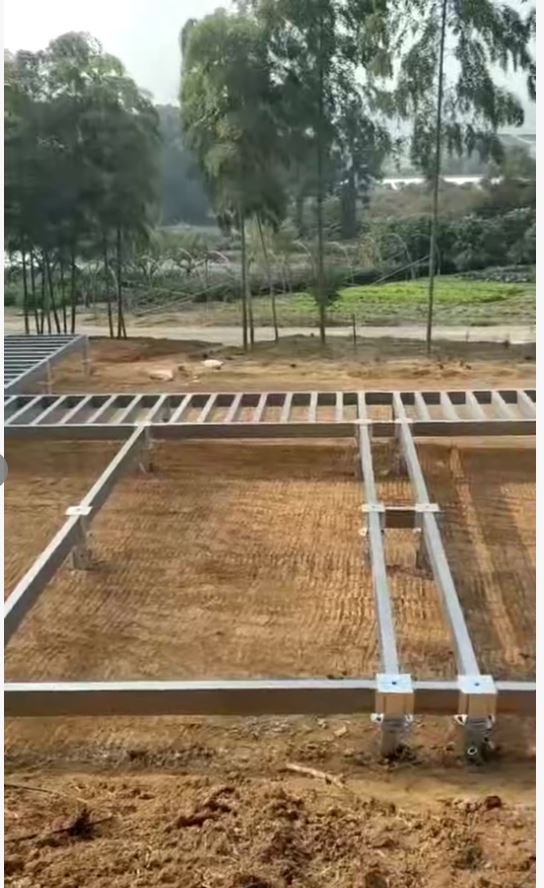

Hillside Video

Build Sequence

43-Step Installation Process

Grouped into 6 build phases · click any image to view the complete process

1. Foundation & Groundwork 2. Structural Frame 3. Floor System 4. Roof Structure 5. Wall & Insulation 6. Exterior Finishing

1. Foundation & Groundwork

STEP 01–10 OF 43

Step 1

1

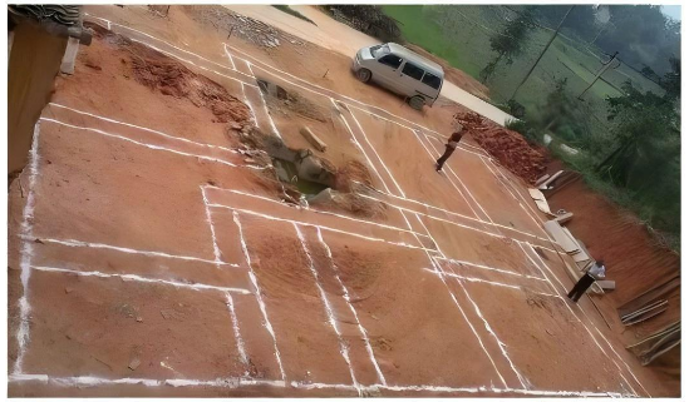

Step 1: Surface Pay Off

Step 2

2

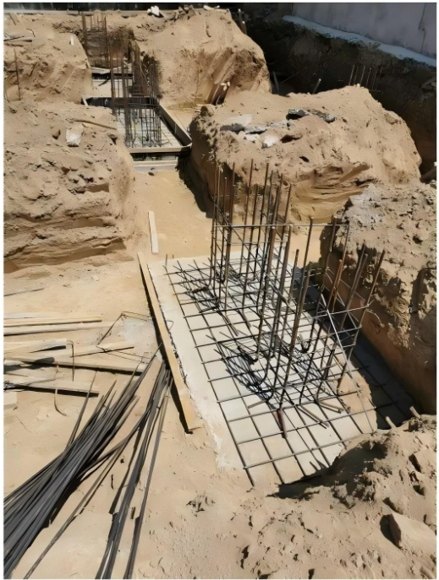

Step 2: Earth Excavation

Step 3

3

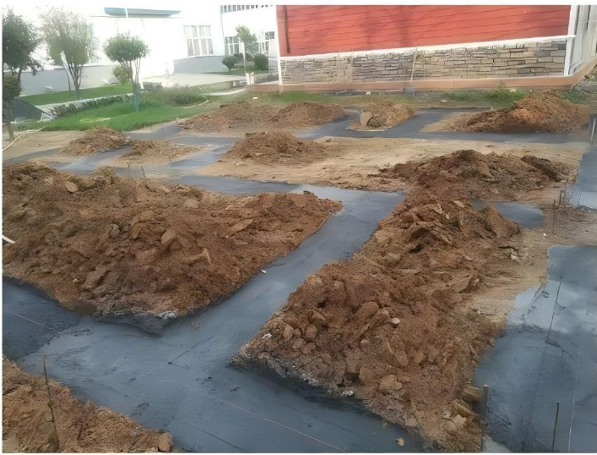

Step 3: Cushion Pouring

Step 4

4

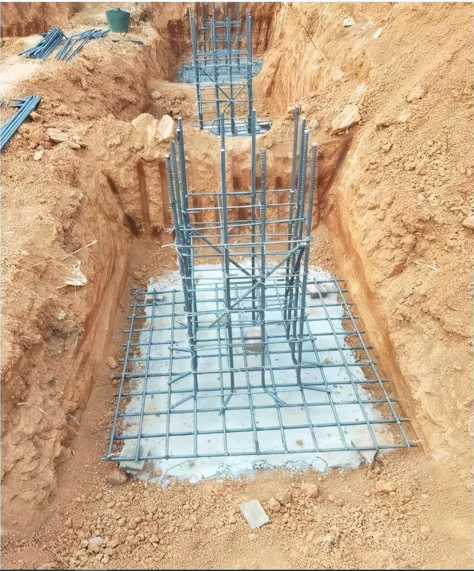

Step 4: Rebar Lashing of Cap

Step 5

5

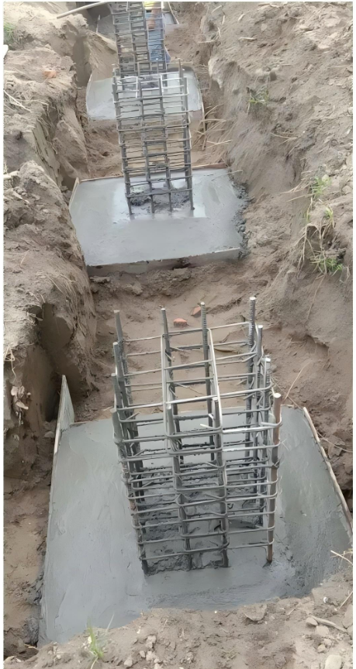

Step 5: Concrete Pouring of Cap

Step 6

6

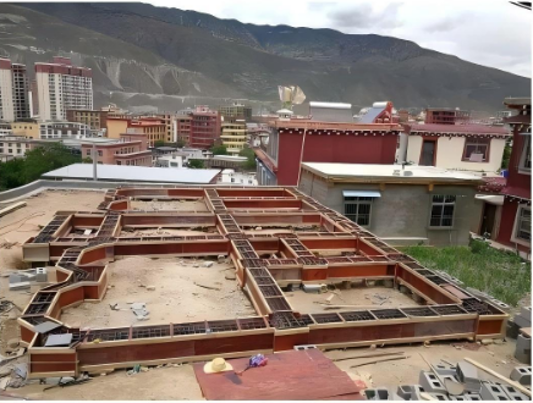

Step 6: Ground Beam Formwork

Step 7

7

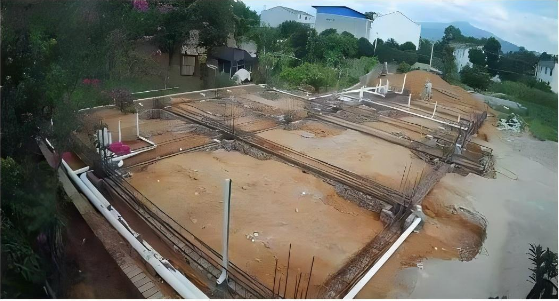

Step 7: Pre-Buried Rainwater Sewers

Step 8

8

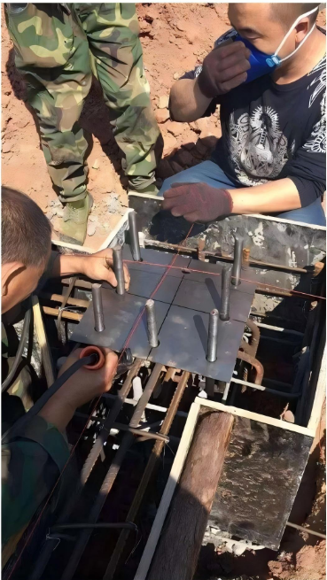

Step 8: Embedded Anchor Bolts

Step 9

9

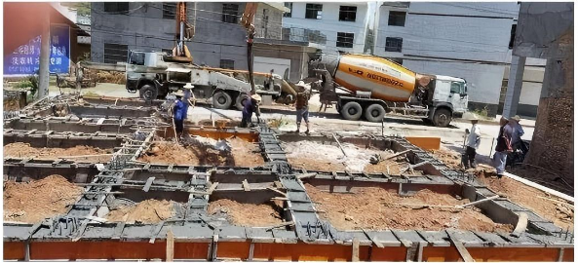

Step 9: Ground Bean Concrete Pouring

Step 10

10

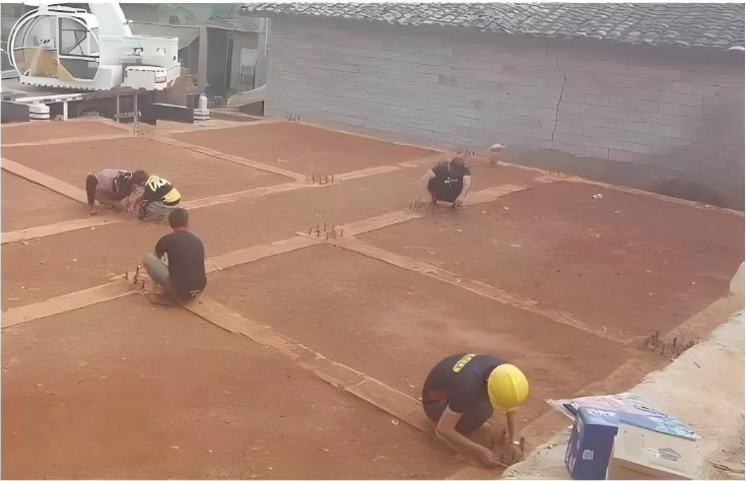

Step 10: Anchor Nut Leveling

2. Structural Frame

STEP 11–13 OF 43

Step 11

11

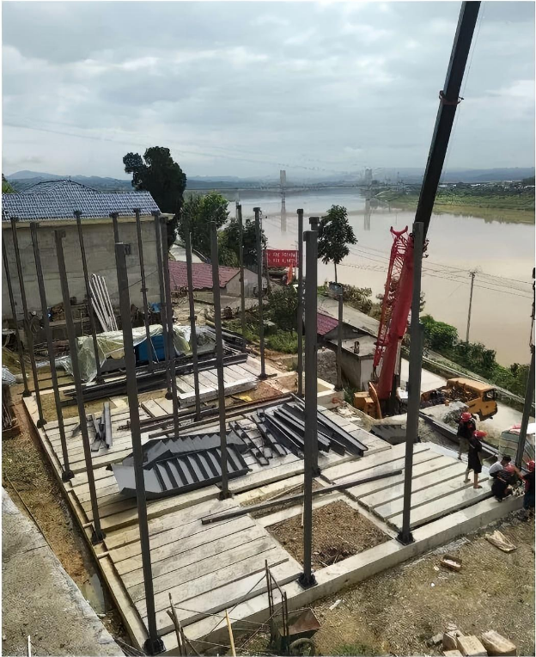

Step 11: Steel Column Hoisting

Step 12

12

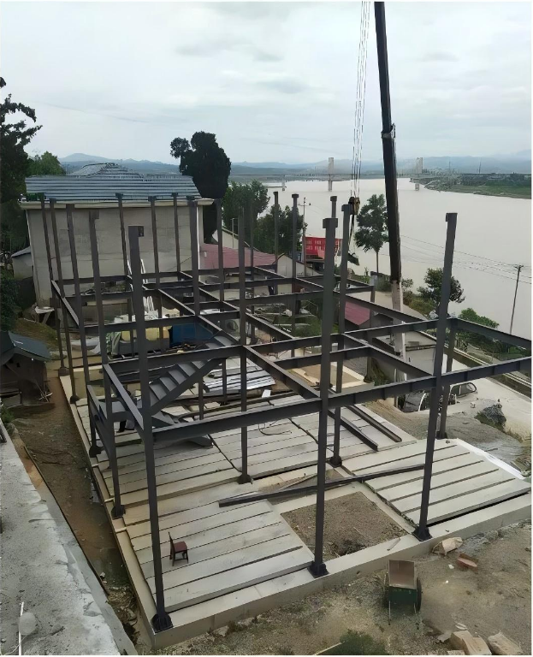

Step 12: Steel Beam Steel Ladder Hoisting

Step 13

13

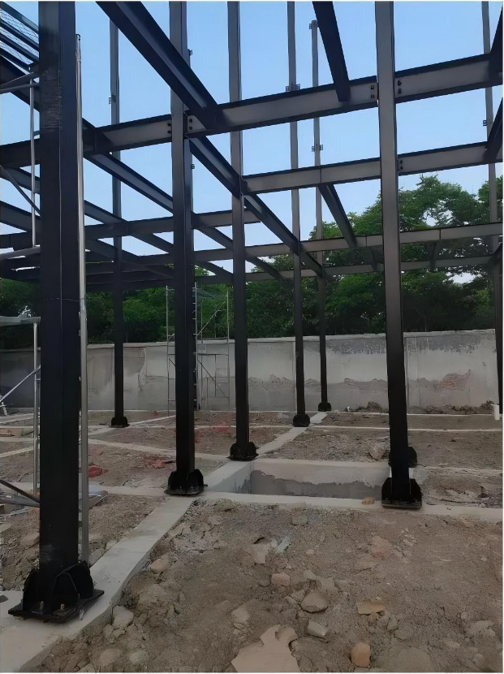

Step 13: Detailed Structure of Beam-Column Nodes

3. Floor System

STEP 14–18 OF 43

Step 14

14

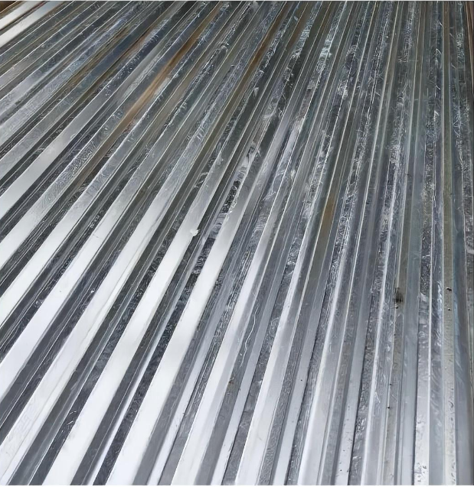

Step 14: Floor Deck Installation

Step 15

15

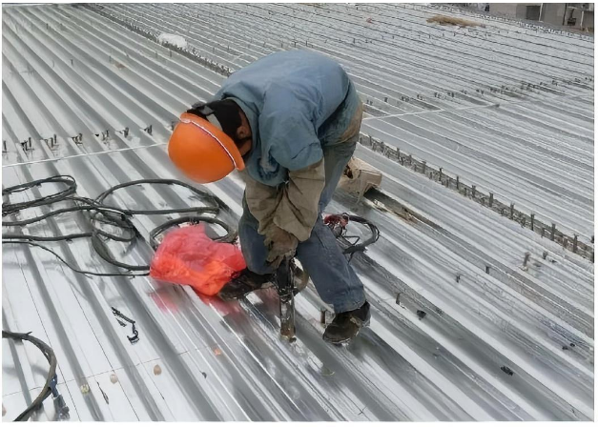

Step 15: Stud Welding of Floor Deck

Step 16

16

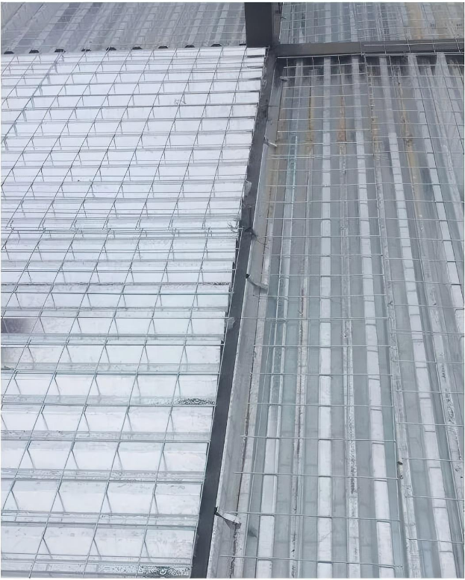

Step 16: Laying of Steel Mesh on Floor

Step 17

17

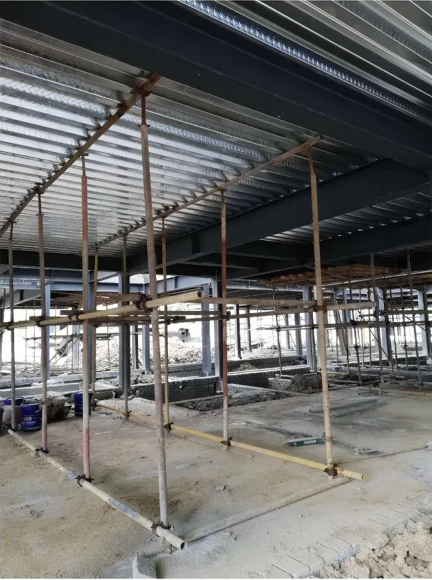

Step 17: Floor Deck Support

Step 18

18

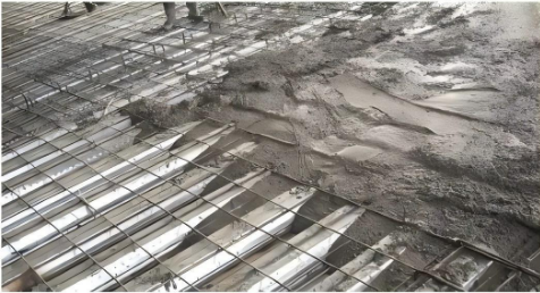

Step 18: Floor Concrete Pouring

4. Roof Structure

STEP 19–29 OF 43

Step 19

19

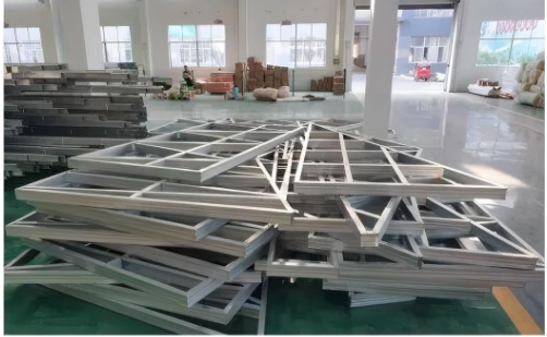

Step 19: Roof Light Steel Ground Asssembly

Step 20

20

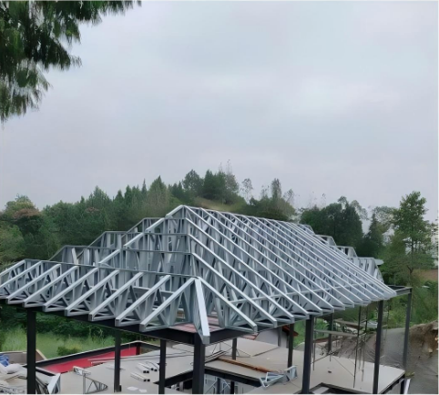

Step 20: Roof Truss Installation

Step 21

21

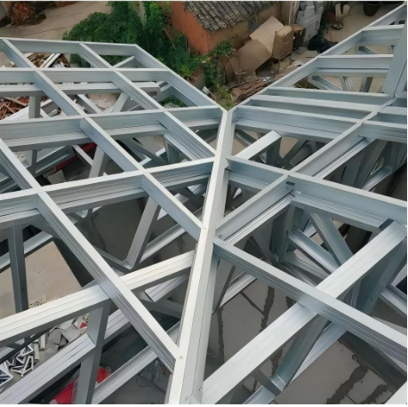

Step 21: Roof Light Steel Panel Installation

Step 22

22

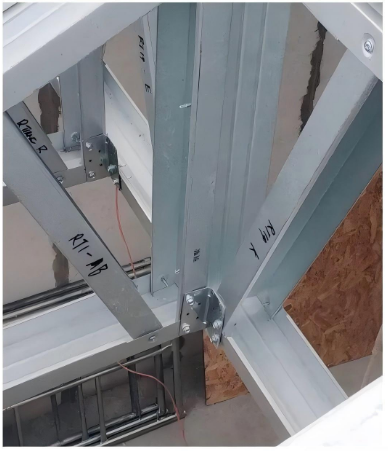

Step 22: Steel Roof Detail Structure

Step 23

23

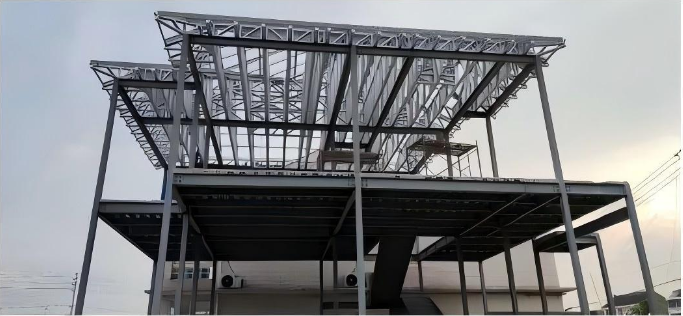

Step 23: Light Steel & Heavy Steel Main Structure

Step 24

24

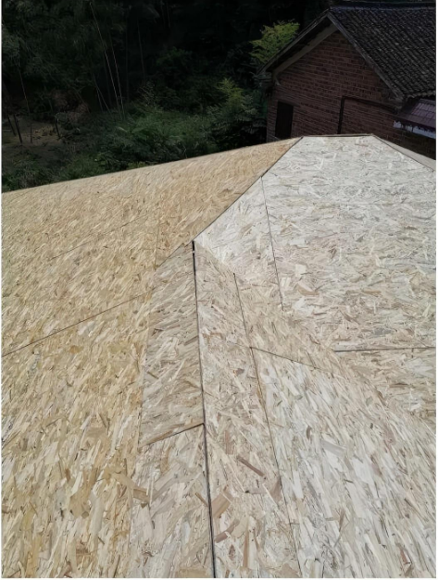

Step 24: Roofing Oriented Strand Board Installation

Step 25

25

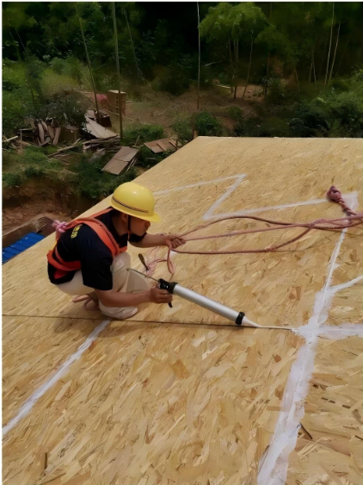

Step 25: Roofing Oriented Strand Board Jointing and Sealing

Step 26

26

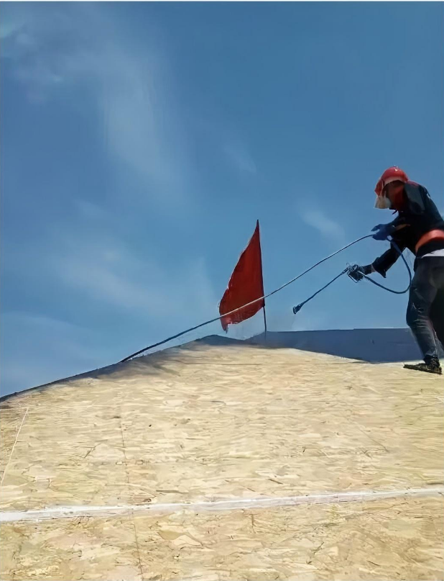

Step 26: Oriented Strand Board Asphalt Anti- Corrosion

Step 27

27

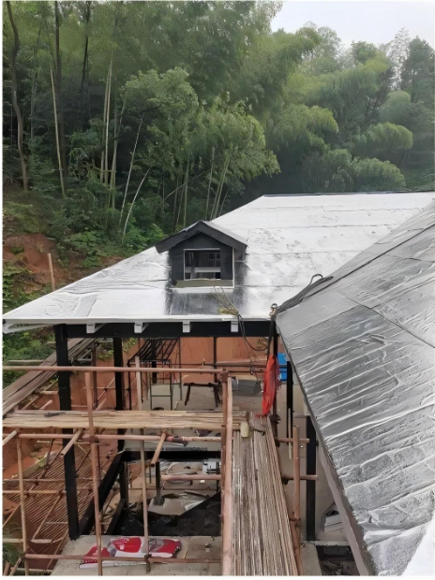

Step 27: Roofing Waterproofing Coiled Material Construction

Step 28

28

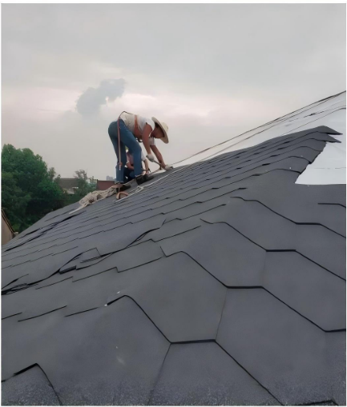

Step 28: Asphalt Shingle Finish Installation

Step 29

29

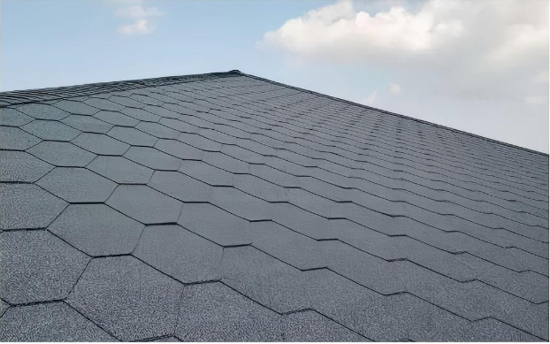

Step 29: Roof Asphalt Shingle COnstruction

5. Wall & Insulation

STEP 30–38 OF 43

Step 30

30

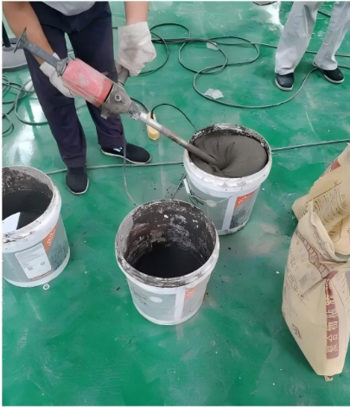

Step 30: Special Mortar Mixing for Wallboard Polymer

Step 31

31

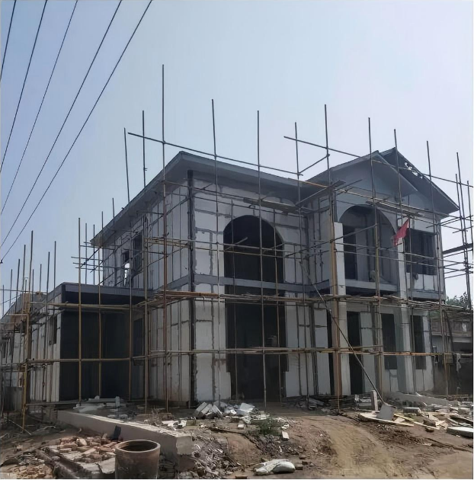

Step 31: Energy-Saving Insulation External Wall Panel Installation

Step 32

32

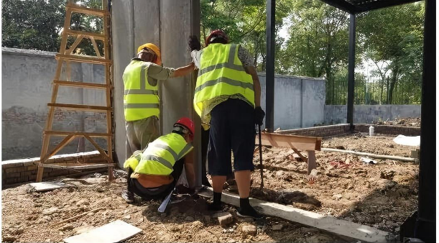

Step 32: Installation of Energy-Saving Thermal Insulation Interior Wall Panels

Step 33

33

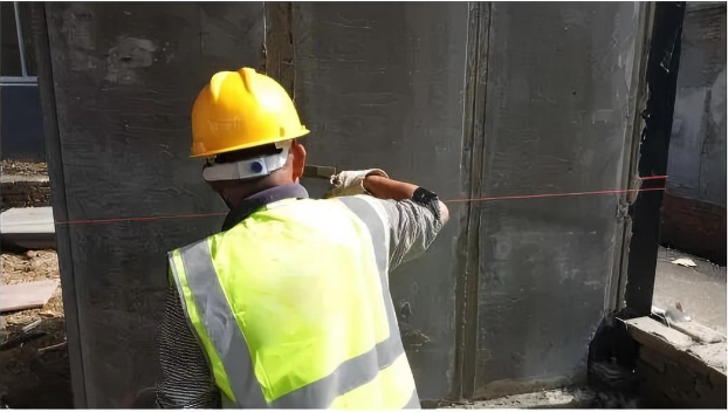

Step 33: Special Mortar for Polymer

Step 34

34

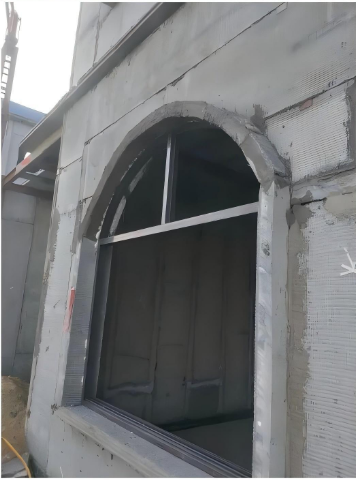

Step 34: Exterior Wall Decoration

Step 35

35

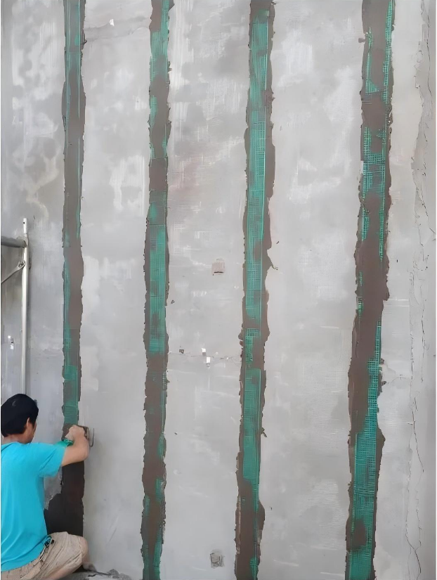

Step 35: External Wall Panel Seam Treatment

Step 36

36

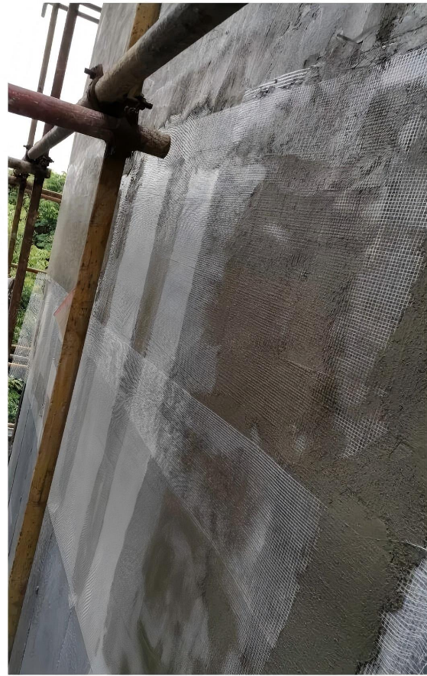

Step 36: External Wall Hanging Net Construction

Step 37

37

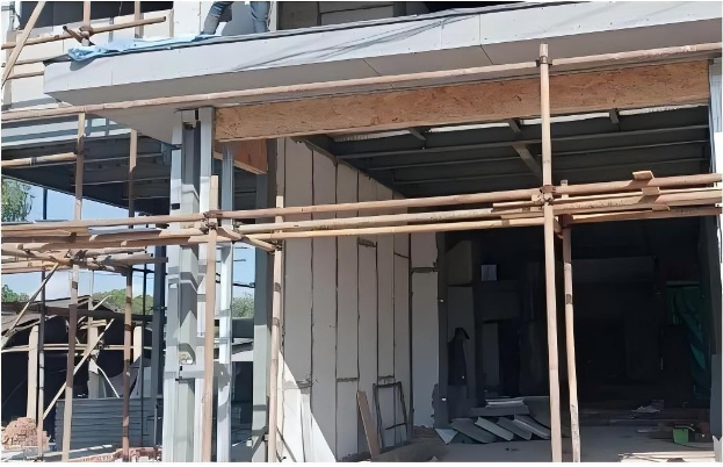

Step 37: Door Detail Decoration

Step 38

38

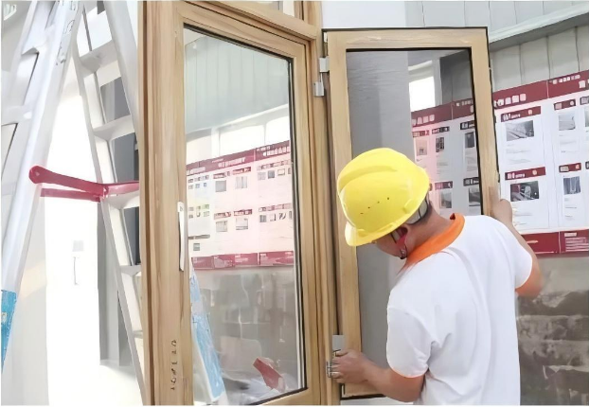

Step 38: Door and Window Installation

6. Exterior Finishing

STEP 39–43 OF 43

Step 39

39

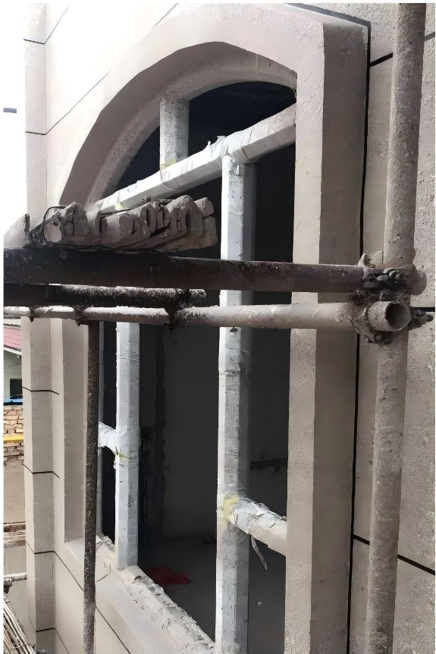

Step 39: Exterior Wall Real Stone Paint Construction 1

Step 40

40

Step 40: PExterior Wall Real Stone Paint Construction 2

Step 41

41

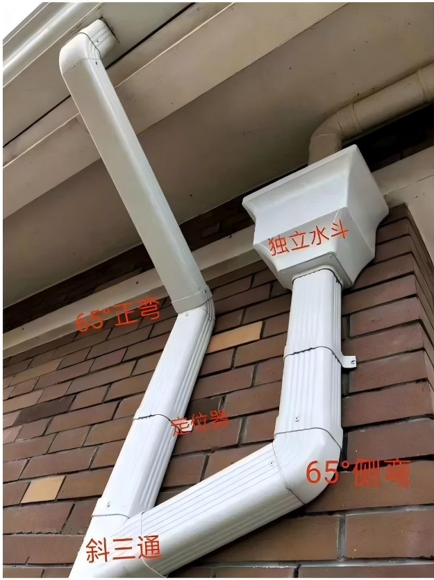

Step 41: Rainwater Pipe System 1

Step 42

42

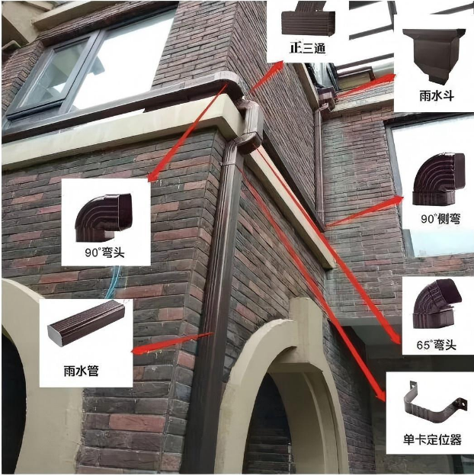

Step 42: Rainwater Pipe System 2

Step 43

43

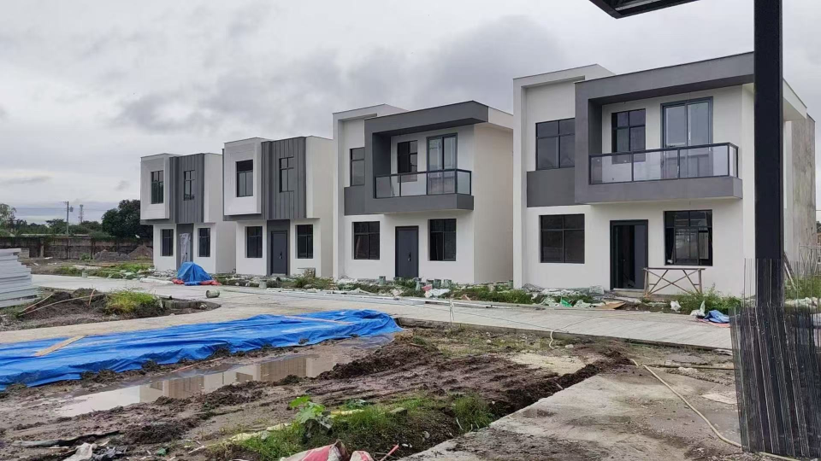

Step 43: Finished Effect of Steel Villa

Why LGS

LGS Technical Features

High Corrosion Resistance

G550 structural steel with Zn275/ZA150 coating, 90+ years lifespan

Prefabricated Assembly

Factory precision cutting, bolted on-site, dry construction

Insulation & Acoustic

Fiberglass filling + double gypsum board, energy efficient

Seismic & Wind Resistant

Triangular truss structure, meets seismic requirements
